Marantz Model M1 streaming amplifier

Marantz Model M1 Streaming Amplifier

MODEL M1 is a wireless streaming amplifier engineered with performance and versatility in mind. Enjoy your favorite music or TV shows with seamless connectivity from one elegant, compact device.

The New Shape of High-Performance Sound

Born from decades of Marantz heritage and engineering expertise, this new generation of wireless streaming amplifier transforms the way you listen to music and watch TV throughout your home .

True Marantz Power

MODEL M1’s 100W per channel of high-quality, low-distortion amplification delivers pristine sound anywhere, while a subwoofer output delivers room-filling scale in larger spaces.

Marantz Multi-Room

The expansive feature set yet diminutive size of M1 makes it the ideal partner for multi-room listening.

Marantz Musical Digital Filtering

MMDF is a unique and sophisticated digital filtering technology that reveals the natural detail and tonality in sound.

TV Sound: Marantz Quality, Soundbar Simplicity

Unveil superb sound from movies and TV programs with MODEL M1 using HDMI eARC and onboard Dolby Digital+ processing.

MODEL M4

An innovative and intelligent take on traditional distribution amplifier designs. MODEL M4 delivers superb Marantz sound throughout your home and gives you control over four zones with four independent HEOS streams.

Specifications


Amplifier

• Power Amplifier Rated output & THD (8 ohm): 100 W+100 W (8 Ω, THD 0.05%)
• Power Amplifier Rated output & THD (4ohm): 125 W + 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.05%)
• Frequency Response: 20 Hz to 20 kHz : ±1 dB
• Connected loudspeaker Impedance: 4 – 16 Ω/ohms

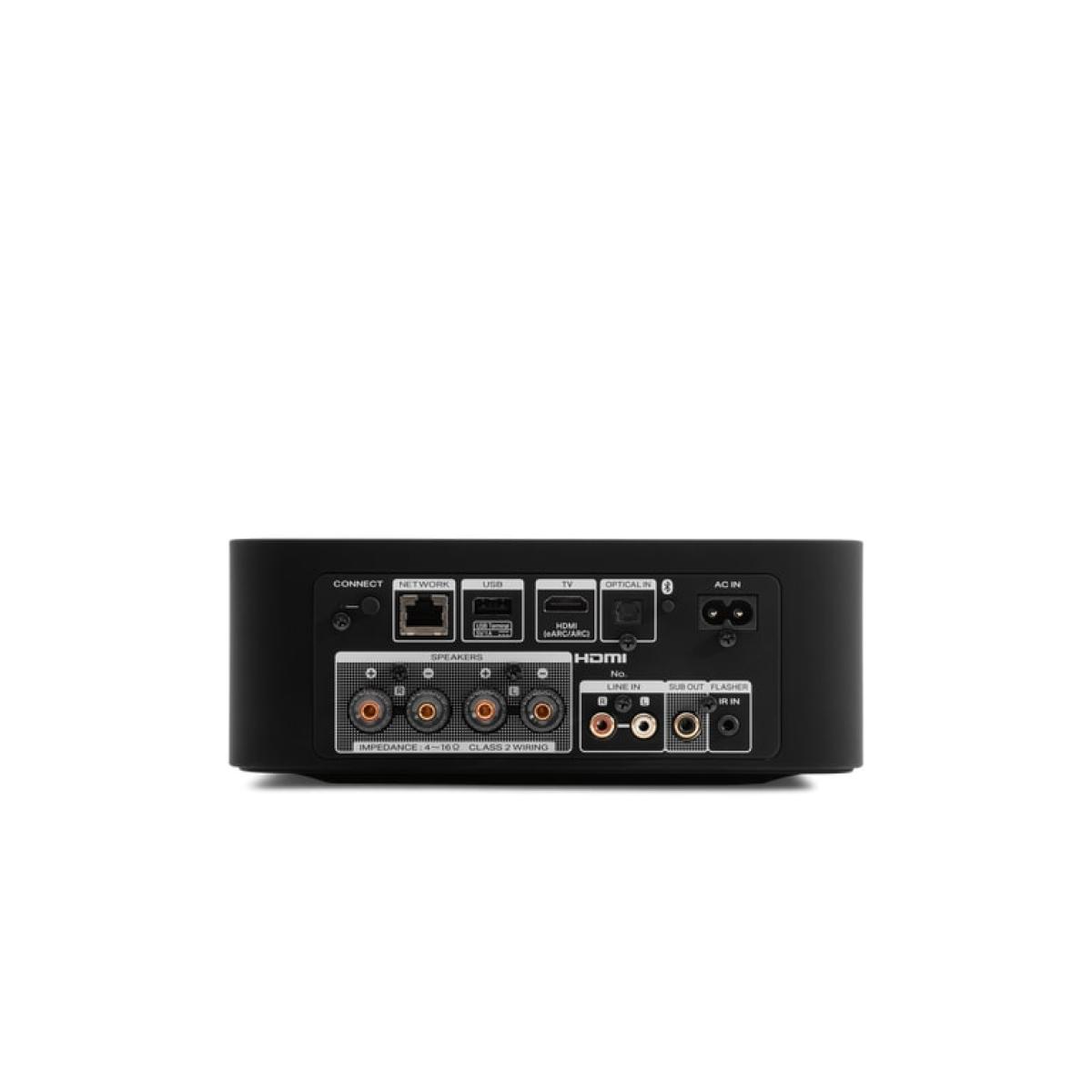

Audio Inputs / Outputs

• Loudspeaker Binding Posts: 4-way binding posts
• Digital Inputs: HDMI (eARC), TOSLINK
• Analog Inputs: RCA L/R
• Subwoofer Out: RCA Mono

Inputs Audio Options

• Channel Assignments: Stereo (Default), Dual Mono
• Volume Limit: 80-100%
• Balance: -15dB to +15dB
• Adjustable High Pass / Low Pass Filters: 40-250 Hz / 40-120 Hz
• EQ: Bass, Treble -5dB to +5dB
• Sound Modes: Stereo, Direct, Virtual, Dialog Enhancer, Night Mode
• TV Sound Grouping: Yes

Audio Format Support

• Decoding: Dolby Digital +, Dolby Digital, LPCM, DSD
• Stereo PCM / Multi-channel PCM: Yes / Yes
• Stereo File Formats (HEOS network share or USB):WMA: up to and including 192 kbps, AAC & MP3: up to and including 320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz, DSD: 2.8 MHz, 5.6MHz

Streaming Technologies

• Bluetooth Receive: BT 4.2.X
• Bluetooth Trasmit: No
• AirPlay: AirPlay 2
• Spotify: Spotify Connect

Networking & Control

• Wired Connectivity: Ethernet
• Wireless Connectivity: Dual band, 802.11 a/b/g/n/ac
• IR Input: 3.5mm
• IR Learning: Yes
• Control System Compatibility via TCP/IP: Creston, Control4, AMX
• HEOS® App: iOS, Android, Kindle Fire

General

• Product Color: Black
• User Interface: Volume up/down, Play / Pause, Multi colored LED status indicator, Connect button (rear), Bluetooth button (rear)
• Dimensions (W x D x H) Inches: 9.41 x 3.31 x 8.54
• Dimensions (W x D x H) mm: 239 x 84 x 217
• Weight (lbs): 4.84
• Weight (kg): 2.2
